產品展示
PRODUCT

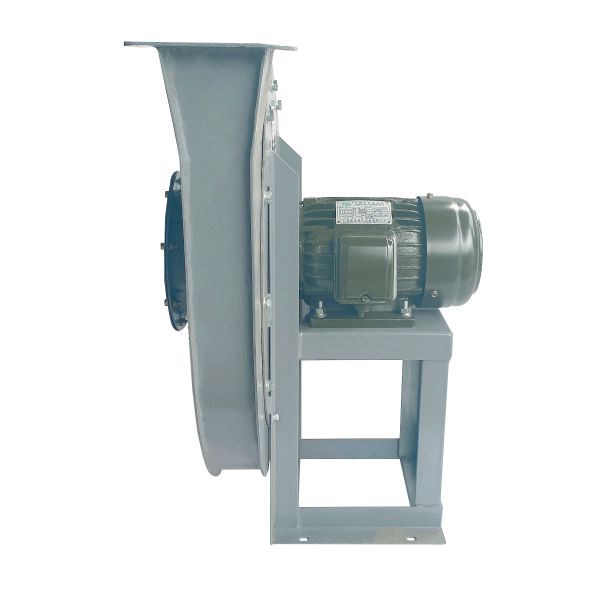

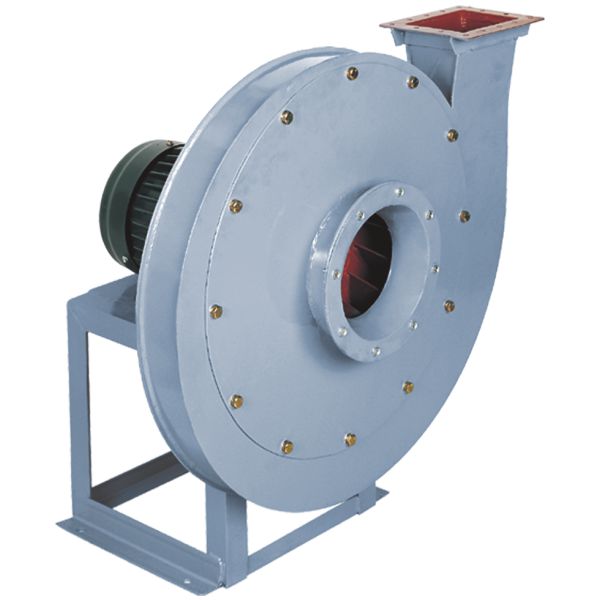

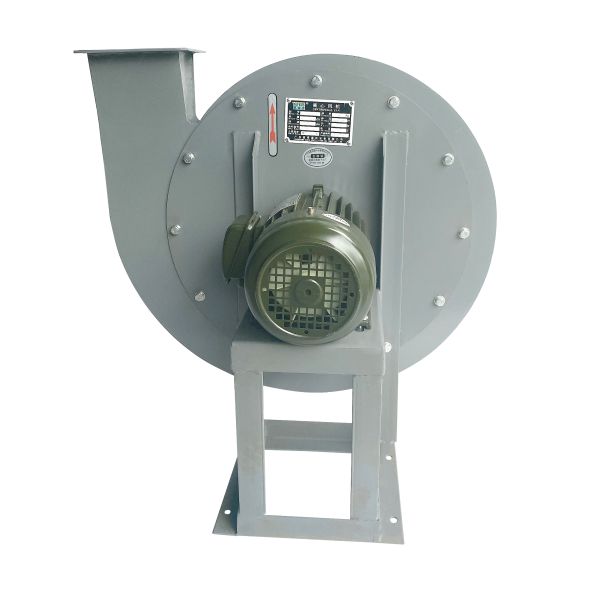

節能風機產品
適用于一般鍛冶、玻璃、陶冶、無線電、電鍍、蓄電池等行業高壓強制通風及糧食、飼料、礦粉等工行業的物料輸送 ；輸送介質為空氣及其他不自然自爆、對人體無害、對銅鐵材料無富士的氣體
90°、180°、0° 三種安裝角度可調
型號：3.5A-12.5D共11個
Energy saving product
Suitable for high pressure forced ventilation in smelting industry,
Glass industry ,ceramic industry ,wireless industry ,electroplating
Industrial ,storage battery industry ,and materials conveying in
Processing industry such as food ,feed ,mineral powder ,etc
The transmitted medium is air,other non hypergolic air ,harmless air ,
And non erosion air to the steel materials
Three adjustable air outlet angles :90°、180°、0°
Model no.:3.5A-12.5D,total 11 models
產品詳情
|
型號
Model |
功率
Power |
轉速
Revolution |
風量
Air Volume |
風壓 Wind pressure （Pa） |
規格
Specifications |
總重量
Total weight |
葉輪重量 Wind wheel Weight (Kg) |
入風口尺寸Air inlet size |
出風口尺寸 Air outlet size |
風輪價 Wind turbine price （RMB） |
整機單價 Unit price of complete machine （RMB） |
|
3.5A |
2.2 |
2900 |
1473-2154 |
2950-2608 |
600x430x630 |
57 |
10 |
Φ125 |
100x90 |
400 |
1900 |
|
4A |
4 |
2900 |
2198-3215 |
3852-3407 |
700x510x840 |
85 |
13 |
Φ224 |
196x128 |
580 |
2400 |
|
5.5 |
2900 |
2500-3750 |
3852-3407 |
104 |
Φ224 |
200x130 |
2800 |
||||
|
7.5 |
2900 |
2800-1950 |
3000-3608 |
109 |
Φ224 |
196x128 |
3000 |
||||
|
4.5A |
7.5 |
2900 |
3130-3680 |
4910-4776 |
810x620x880 |
125 |
18 |
Φ250 |
210x160 |
700 |
3400 |
|
11 |
2900 |
3963-4920 |
4661-4256 |
166 |
Φ250 |
221x144 |
4800 |
||||
|
5A |
15 |
2900 |
4293-6349 |
6035-5381 |
890x750x985 |
187 |
26 |
Φ280 |
245x160 |
860 |
5500 |
|
18.5 |
2900 |
5120-6762 |
5180-4985 |
198 |
Φ280 |
245x160 |
6400 |
||||
|
5.6A |
22 |
2900 |
7766-9500 |
7218-6527 |
925x1010x1110 |
93 |
34 |
Φ315 |
274x179 |
1200 |
7600 |
|
30 |
2900 |
7766-9500 |
7218-6527 |
Φ315 |
274x179 |
9600 |
|||||
|
6.3A |
45 |
2900 |
8588-11883 |
9698-8915 |
1090x1150x1245 |
108 |
40 |
Φ355 |
309x202 |
1520 |
14600 |
|
55 |
2900 |
12699-13525 |
8636-8310 |
Φ355 |
309x202 |
21000 |
